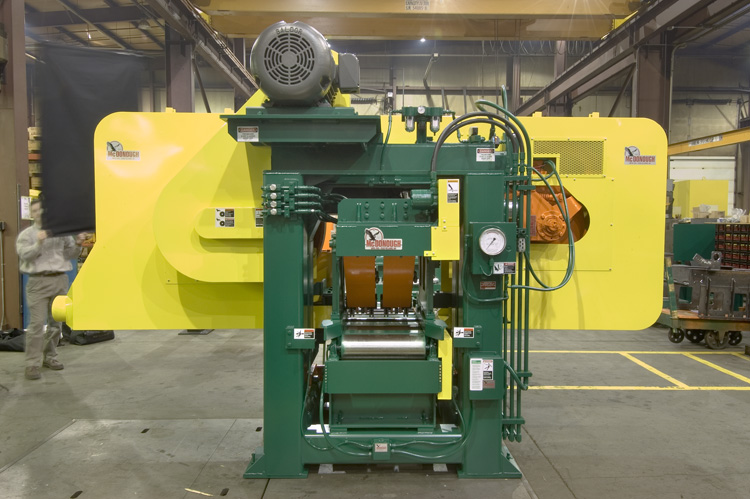

The ideal Resaw for mills looking for a low cost Horizontal to increase grade, production and yield. Feed rates over 200 feet per minute. Perfect for sawing cants, slabs, or multiples.

  • Heavy Duty Square Tubing Frame with linear bearing ways for shifting column.
  • Hydraulically Driven Feed Table with machined smooth table rolls.
  • Hydraulically Driven Hold Down Rolls with segmented sprockets to feed slabs or knurled and chromed rolls for feeding boards and cants.
  • Table widths from 18" up to 24" wide.
  • Servo Setworks with modular style set shaft and cam roller assembly shifts column at 6" per second. Sets are made with the push of a button on the extensive operators console.
  • Exclusive McDonough Air Strain is the simplest, most effective system to increase feed speeds and minimize miscut lumber.
  • Cartridge Type Pressure Guide System assists in faster feed speeds and increased accuracy guide block dressing machine to resurface guides is included with each Band Mill.
  • Cast Iron Wheels. Preferred by saw filers because they prevent saw blades from getting hot and loosing tension, unlike steel wheels.
  • Other standard features: Hydraulically operated idler wheel lift, Timken railroad car bearings in lower wheel, saw blade cleaning and lubricating device.
Available Options
  • Electric remote top wheel tilt, steel wheel guards, motor and drive packages.
  • Infeed Tables can be equipped with hydraulic run-up chains to position material against fence, slab flippers to place slabs face down or hydraulic chain type cant turners.
  • Outfeed Tables come with lugged sweep chains to transfer material off rollcase on to separator system.
  • Outfeed table can have up to 9 different sorts by using a fully programmed PLC to create the fastest, most accurate sorting system available.

Available Sizes
  • 46" — 12,000 pounds. 5" wide x 25' long saw blades. 60 to 75 HP required.
  • 54" — 16,000 pounds. 8" wide x 30' long saw blades. 75 to 125 HP required.
  • 62" — 24,000 pounds. 10" wide x 36' long saw blades. 150 HP required.
  • Custom saw lengths can be accommodated upon request.

Available Options
  • Tandem Twin or Opposed Twin available
