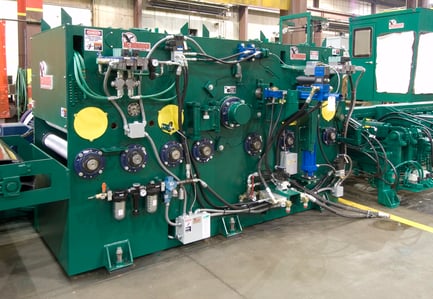

The McDonough gang edger is available with a shifting cluster and shifting linebar to allow the operator to choose both the size and location of the center cant with simple controls from the cab.

  • Top, Bottom, and Double arbor configurations
  • Available as an optimized machine in both transverse and optimization configurations
  • Available configured for thin-kerf guided saws
  • Available designs for cants up to 12" thick
  • Rugged 1½" sidewall
  • Feed speeds of over 500 fpm in some thicknesses
  • Standard 15" touch-screen HMI in operator console
  • Controls system utilizing proven AB ControlLogix© platform
  • Integrates with the optimization system of your choice
  • Available designs for cants up to 10" thick
  • Throat widths up to 72" wide
  • Optimized feed table designs for both transverse and linear feed
Available Options
  • Clamshell design
  • Fixed pocket or shifting cluster designs
  • Gear-belt drive system
  • Hydraulic or pneumatic hold-down system
  • Available machined solid feed rollers
  • Available Guided or non-guided
